500-kVA-3PH-Padmount-13200-Y-460-D(Auction ID: 5160, End Time : 04/26/2020 08:32:04 am)

500 kVA 3PH Padmount 13200 Y - 460 D

Start Time:05/02/2019 08:31:23 CDT

End Time:04/26/2020 08:32:04 CDT

Location: Alabama, 36567

Country: USA

Time Left: Time Ended

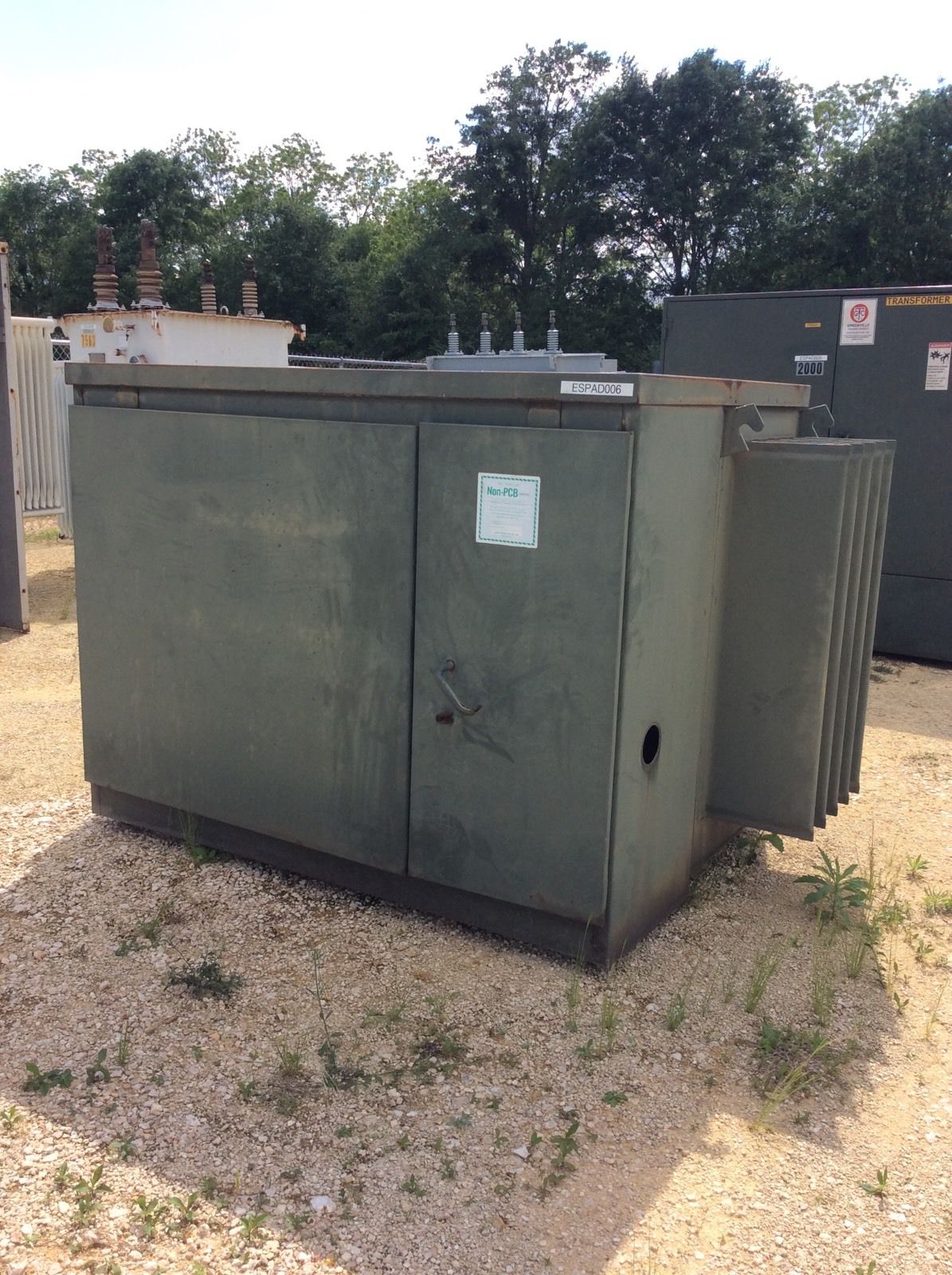

500 kVA Three Phase Padmount Transformer Primary Voltage: 13200 Y (floating neutral) Secondary Voltage: 460 D Please Contact us about this unit Phil@electricsouth.com / 724-856-6797 Unit can be sold as-is E-OK without warranty or Reconditioned with a 3 year warranty. Lead times on reconditioned are generally 2-4 weeks but may fluctuate depending on our workload at the time of order.

https://www.kvanetwork.com/uploads/terms/e810b608d43f29587fbf504ede2f1677.pdf

Power	Phase Type : Three
Capacity	KVA : 500		MVA : -
Voltages	Pri-Voltage : 13200 Y	Sec Voltage : 460 D	Taps : With Taps 2x2.5% Above and Below
Other	Impedance : 1.8%

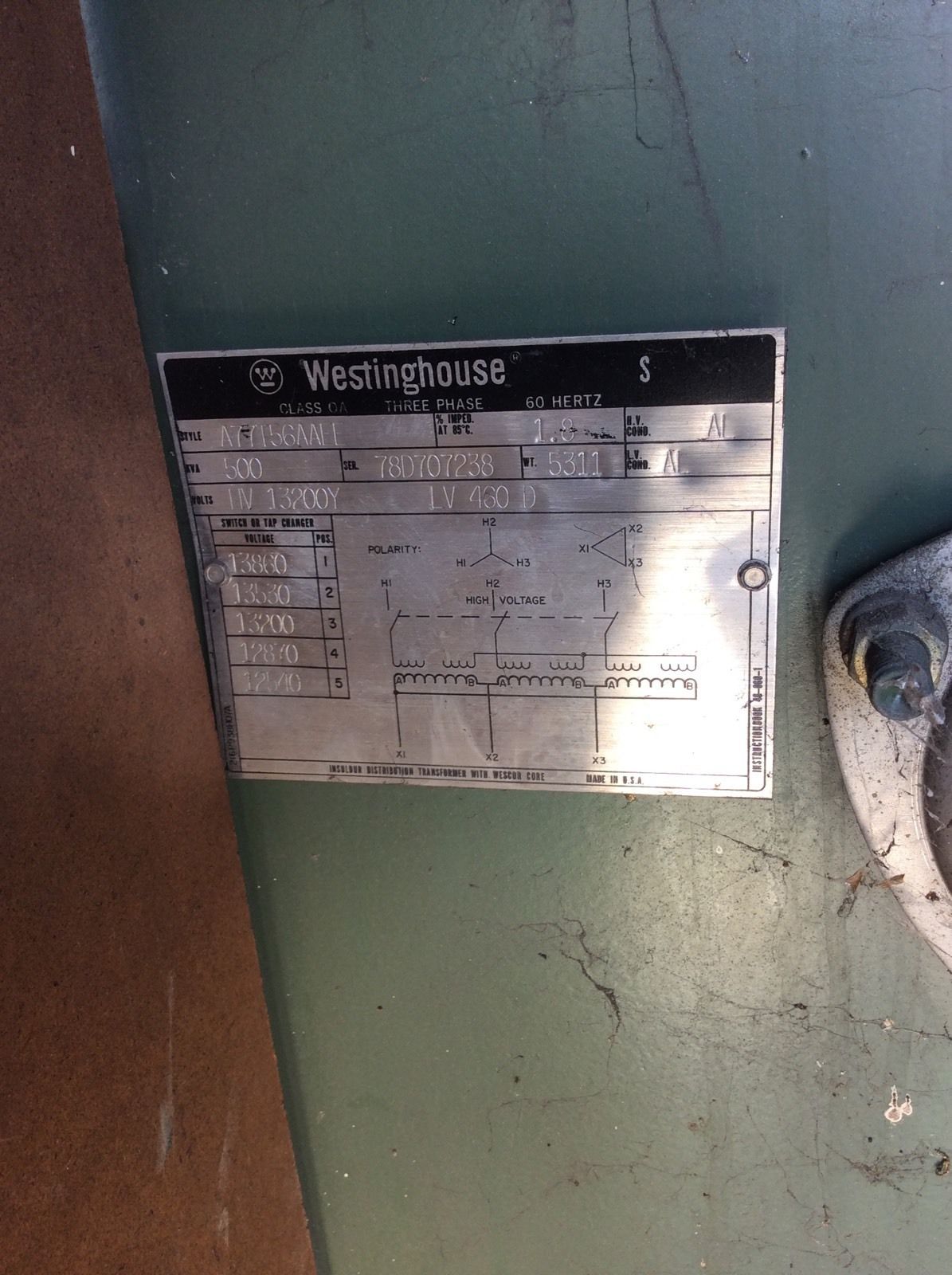

Record	Serial Num : 78D707238	Manufacturer : Westinghouse	Part Number : -	Stock Number : ESPAD006
Dimensions	Height :	Width :	Depth : 0
