1000-kVA-3PH-Padmount-4160-GY-2400-480-Y-277(Auction ID: 5167, End Time : 04/26/2020 09:42:28 am)

1000 kVA 3PH Padmount 4160 GY 2400 - 480 Y 277

Start Time:05/02/2019 09:41:46 CDT

End Time:04/26/2020 09:42:28 CDT

Location: Alabama, 36567

Country: USA

Time Left: Time Ended

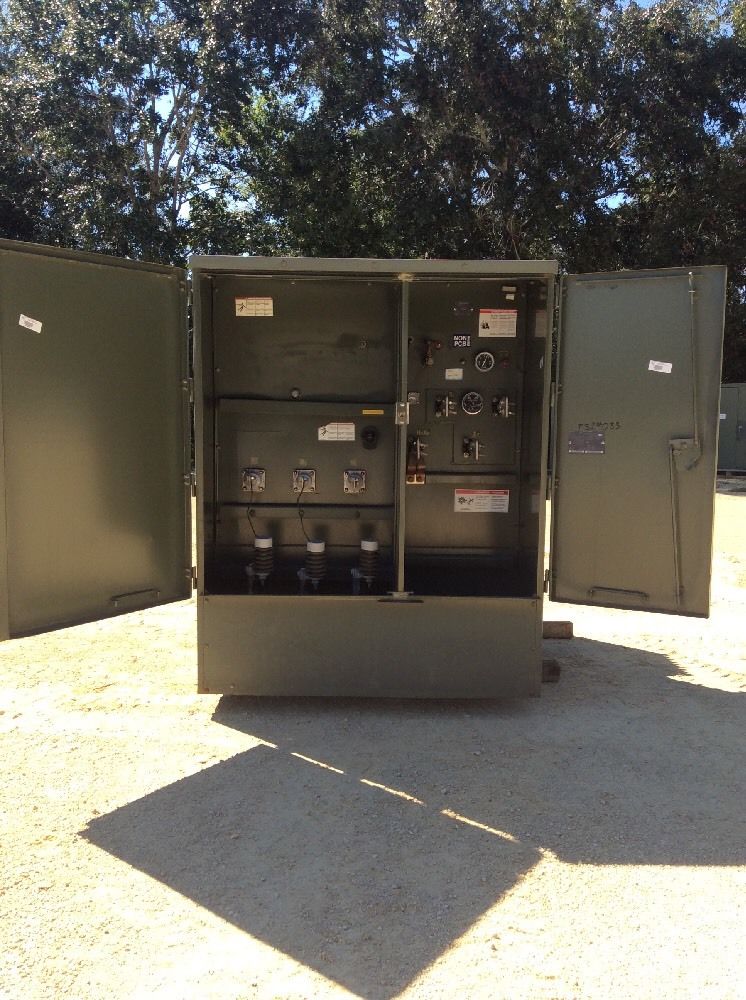

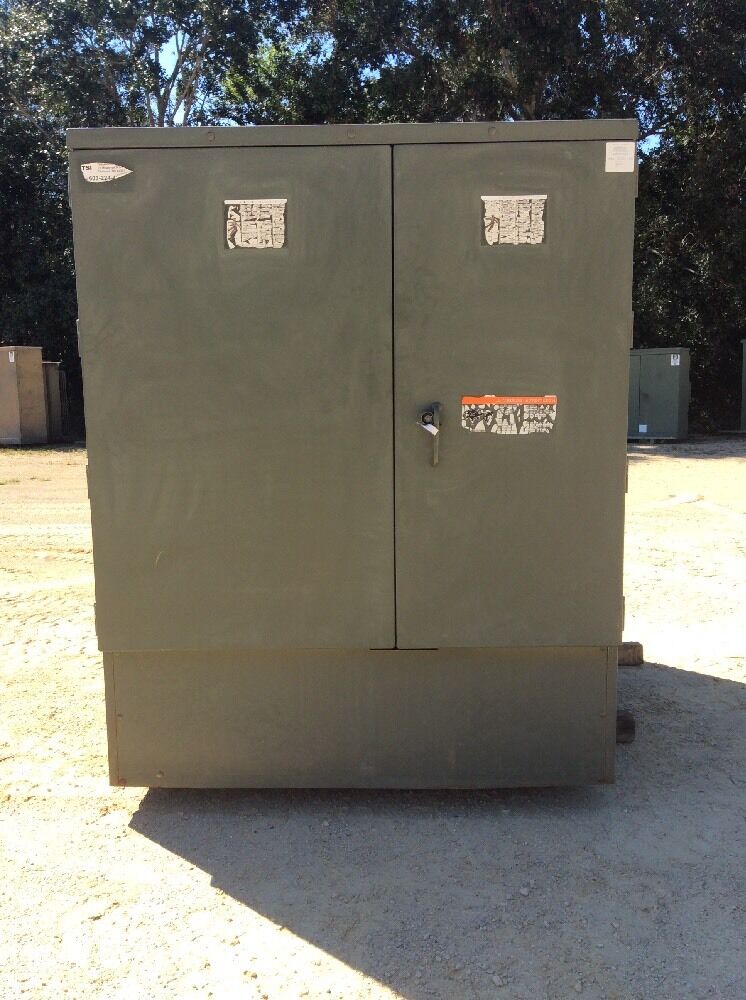

1000 kVA Three Phase Padmount Transformer Primary Voltage: 4160 GY 2400 Secondary Voltage: 480 Y 277 Please Contact us about this unit Phil@electricsouth.com / 724-856-6797 Unit can be sold as-is E-OK without warranty or Reconditioned with a 3 year warranty. Lead times on reconditioned are generally 2-4 weeks but may fluctuate depending on our workload at the time of order.

https://www.kvanetwork.com/uploads/terms/5923b83d2584251d877f4c8c94786128.pdf

Power	Phase Type : Three
Capacity	KVA : 1000		MVA : -
Voltages	Pri-Voltage : 4160 GY 2400	Sec Voltage : 480 Y 277	Taps : With Taps 2x2.5% Above and Below
Other	Impedance : 5.8%

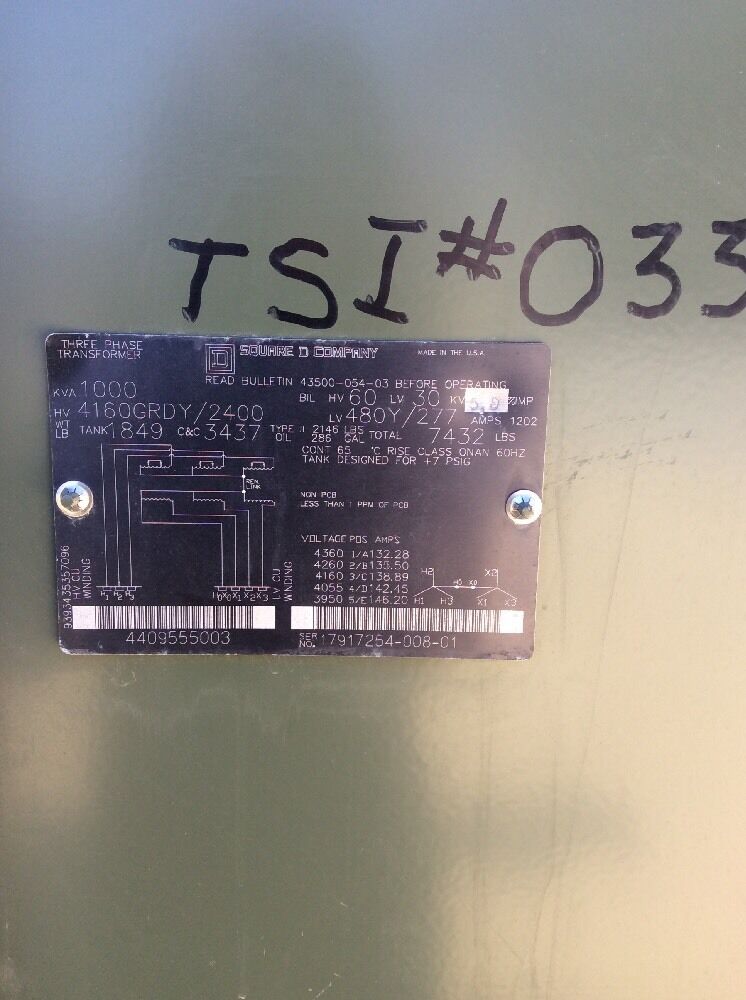

Record	Serial Num : 4409555003	Manufacturer : Howard for Square D	Part Number : -	Stock Number : ESPAD026
Dimensions	Height :	Width :	Depth : 0
