150-kVA-3PH-Padmount-4160-D-480-Y-277(Auction ID: 5210, End Time : 04/27/2020 16:00:05 pm)

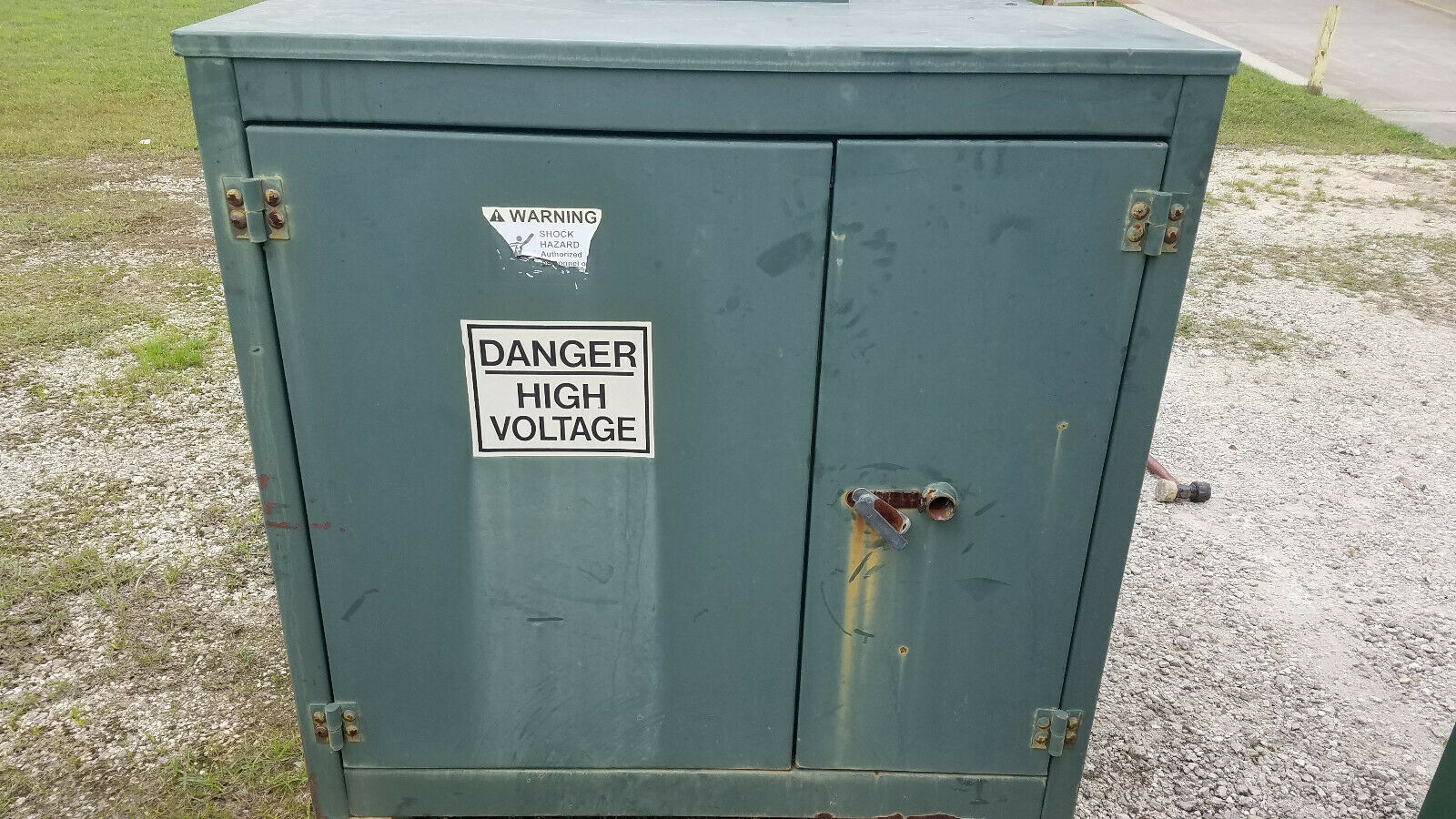

150 kVA 3PH Padmount 4160 D - 480 Y 277

Start Time:05/03/2019 15:59:22 CDT

End Time:04/27/2020 16:00:05 CDT

Location: Alabama, 36567

Country: USA

Time Left: Time Ended

150 kVA Three Phase Padmount Transformer Primary Voltage: 4160 D Secondary Voltage: 480 Y 277 Please Contact us about this unit Phil@electricsouth.com / 724-856-6797 Unit can be sold as-is E-OK without warranty or Reconditioned with a 3 year warranty. Lead times on reconditioned are generally 2-4 weeks but may fluctuate depending on our workload at the time of order.

https://electricsouth.com/terms-and-conditions

Power	Phase Type : Three
Capacity	KVA : 150		MVA : -

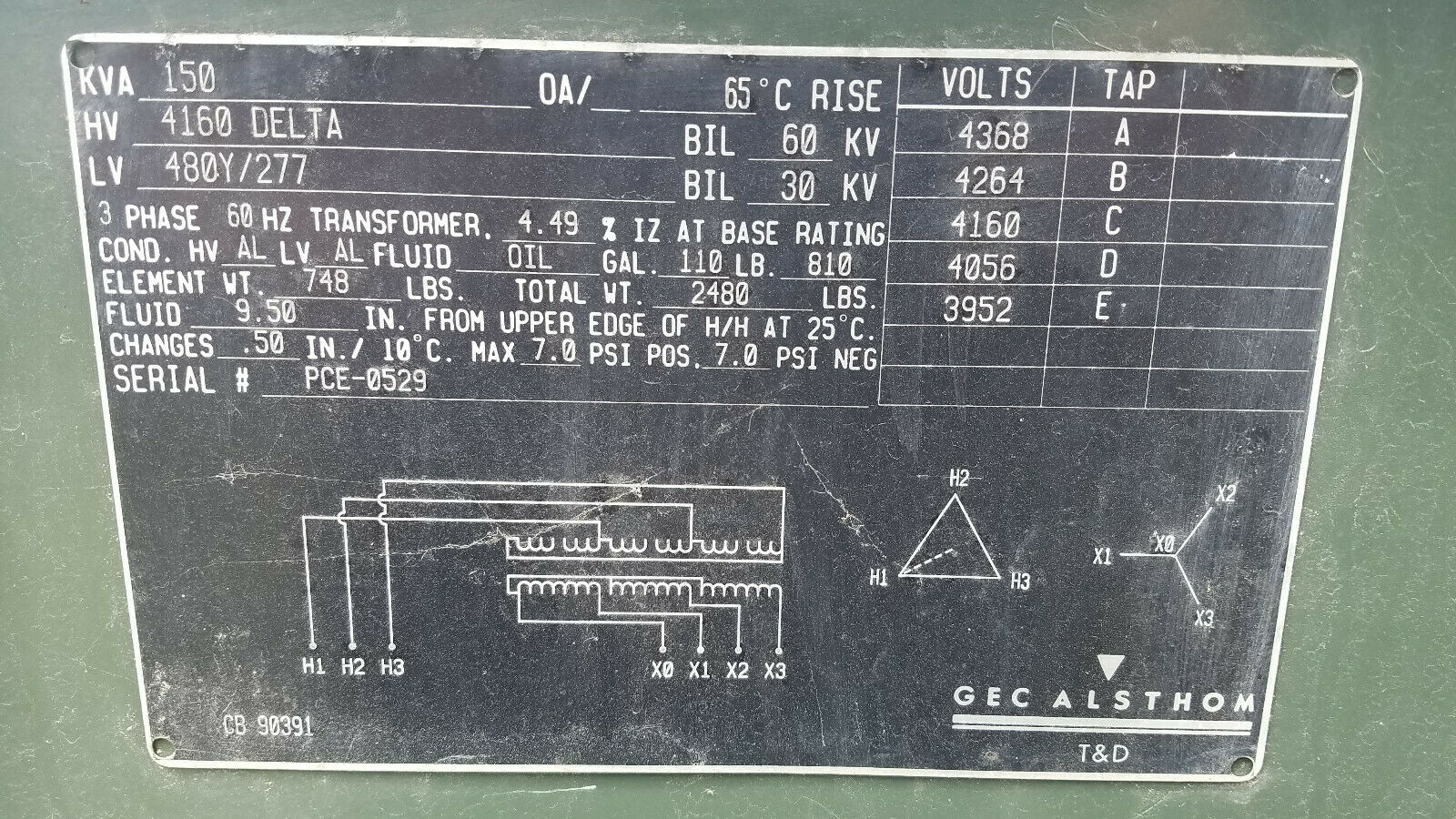

Voltages	Pri-Voltage : 4160 D	Sec Voltage : 480 Y 277	Taps : With Taps 2x2.5% Above and Below
Other	Impedance : 4.49%
Record	Serial Num : PCE0529	Manufacturer : GEC Alsthom	Part Number : -	Stock Number : ESPAD092
Dimensions	Height :	Width :	Depth : 0
