FOB, Belgium, WI 53004, USA
Hours : Zero, New Surplus, Year of Mfg 2013

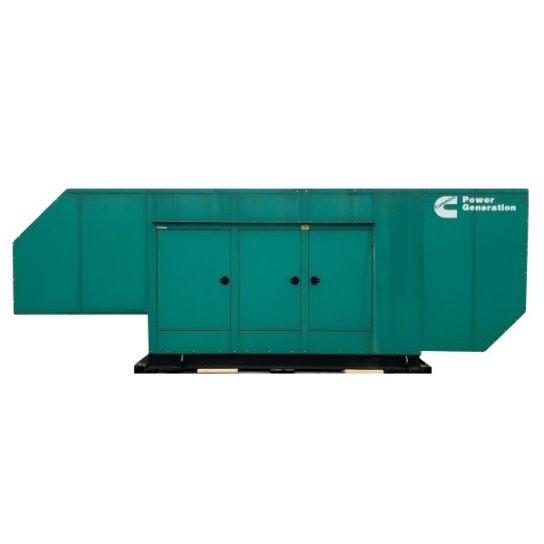

General Package Information :
Make : Cummins NP Power LLC
Made in the USA

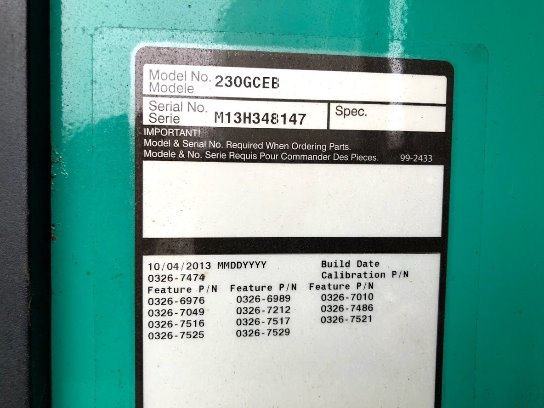

Model : GCEB
Mfg Date : 10-2013
Rating : 230 KW
Phase : Single
Voltage : 240 VAC, 1 phase
KVA P.F. : 1.0
Fuel Type : Natural Gas
Duty Rating : Continuous
Muffler Included : Yes, pancake style located inside the enclosure

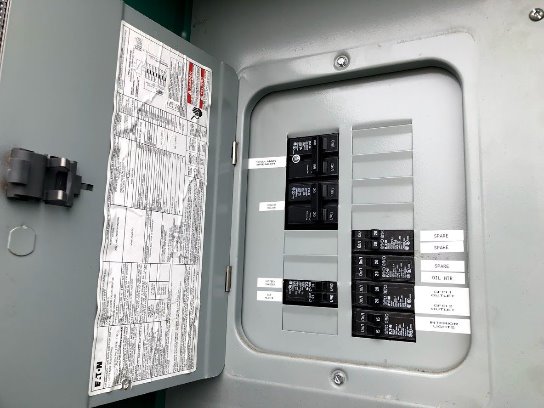

Main Breaker Included : Yes, plus two auxiliary breakers
Transfer Switch Included : Yes, 1000 Amp Rated, New Surplus ATS Included

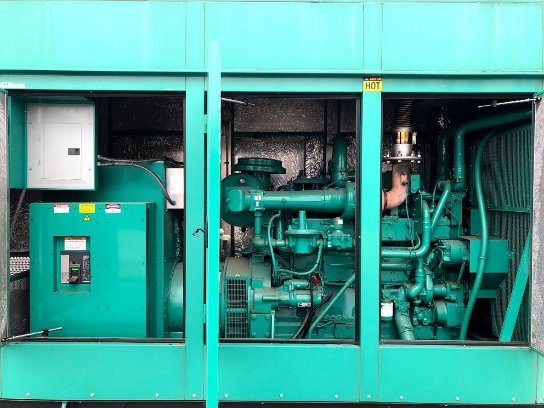

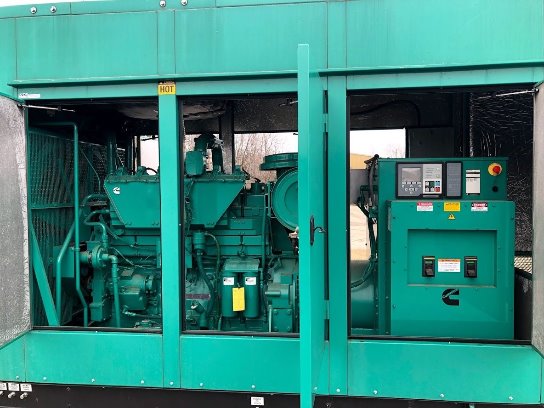

Engine Information
Make : Cummins
Model : KTA19GC (KTA19GC/OG-CAT)
Horse Power : 380 @ 1800 RPM
Displacement : 19 Liter
Cylinders : 6
Configuration : In-Line
Aspiration : Turbo charged, after cooled
Engine serial number : 37259111

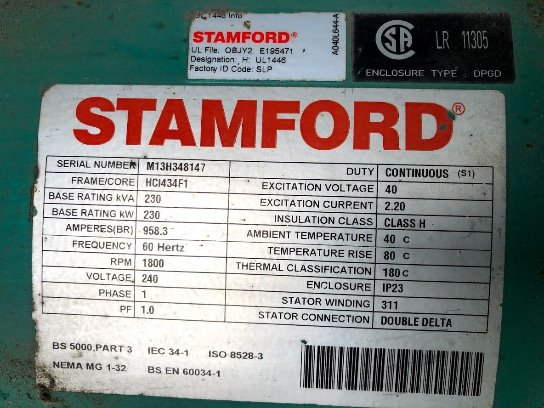

Generator End Information
Make : Stamford
KW : 230
Serial Number : M13H348147
Duty : Continuous (S1)
Frame / core : HCI43F1
Amps : 958.3
Voltage : 240
Phase : 1
PF : 1
RPM: 1800
Stator connection : Double Delta
Stator Winding : 311, 12 Wire
Enclosure : IP23
Thermal Classification : 180 Deg C
Temp Rise : 80 Deg C
Ambient Temp : 40 Deg C
Ins Class : H
Excitation Voltage : 40
Excitation Current : 2.20
Battery Charger : Sens, NRG22-10-RC (Ac Input 120/208-240, 60 hz, 1ph 6/3 amps) (Dc output 12/24 VDC 10 Amps)

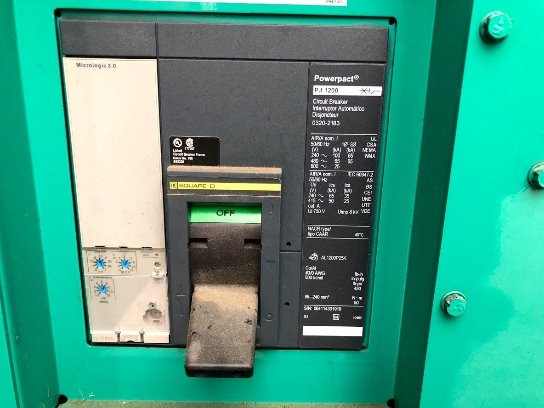

Main Breaker Information
Make : Square D
Model : Powerpact
Cat Number : PJ1200
600 Volt
Trip Functions : LI
Trip Unit : Micrologic 3.0
Included Transfer Switch :
Make : Cummins Power Generation
Model : OTPCSED-1337783
Serial Number : I130564216
Spec : A
Current Rating : 1000 Amps
Continuous Load Rating
Not to exceed 80 percent of switch rating
Voltage : 240
Frequency : 60
Poles : 3
Load Bank Information
Make : Simplex
Type : Forced air-cooled resistive load bank
Model : Neptune-230
Capacity : 230 KW at 1.0 PF
Cooling: Forced Air
Airlfow : 4260 CFM
Enclosure : Type 3R
Load control power circuit : Voltage 240/120, 1phase, 3wire, 60 hz
Full Load Amps : 986 amps at 240 volt
Fan Power Internal : 240V, 1phase, 60 hz, fan motor current 28 amps
Shipping Information : ships flat bed style freight only from 281 Commerce St Belgium, WI 53004
Dimensions : 23 Feet Long x 5.5 Feet Wide x 8 Feet 7 Inches Tall
Est Weight : 16,000 Pounds
