Classified ID : 5452

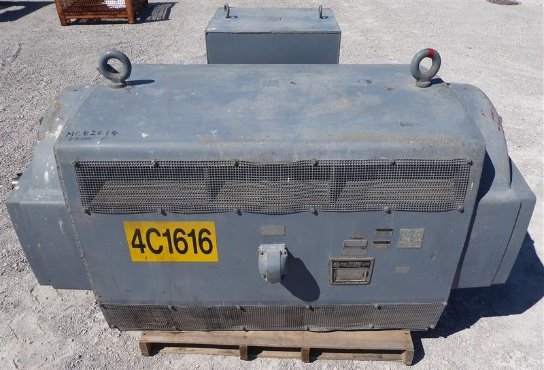

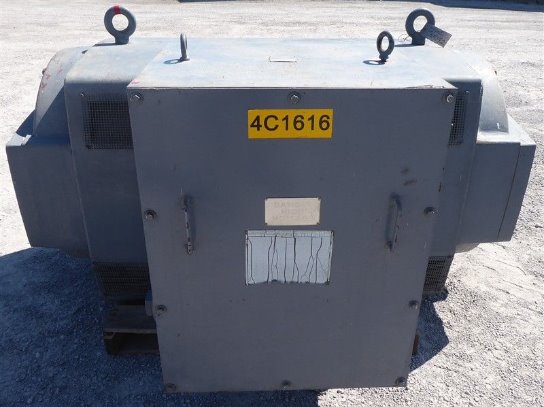

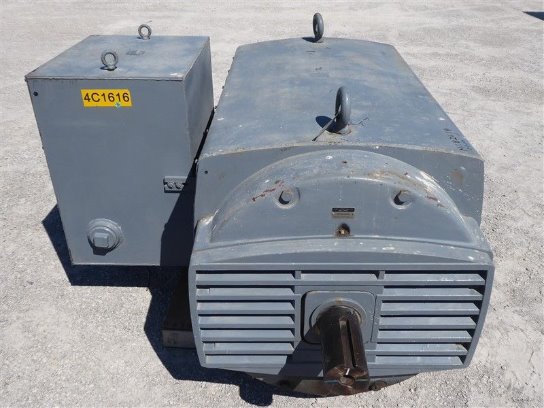

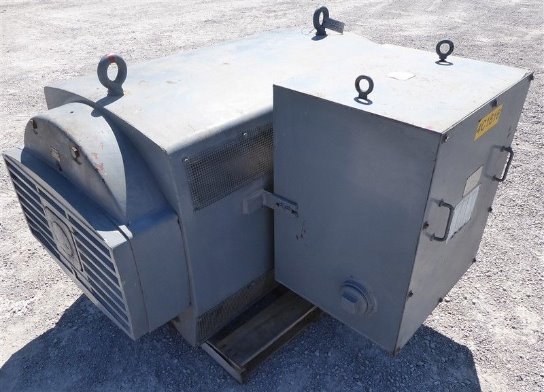

400 HP US MOTORS TITAN LINE MOTOR FRAME 6810MS 565 RPM 4160V E-OK REBUILT
Start Time:08/30/2019 16:31:37 CDT
End Time:11/28/2019 15:31:44 CDT
Location: Wisconsin, 53004
Country: USA
Time Left:

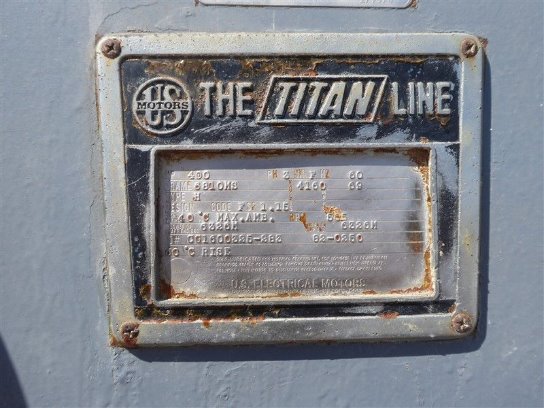

Guaranteed E-OK FOB: Belgium, WI Status: Rebuilt ID#: CG1600325-283 Frame: 6810MS HP: 400 RPM: 565 Volts: 4160 Amps: 69 Phase: 3 Hz: 60 Insulation Class: F Type: H Design Code: F Service Factor: 1.15 Cont. Rating: 40°C Max. Amb. Rise: 60°C Shaft Length: 7-3/4" Shaft Diameter: 4-3/8" Keyway Length: 6" Keyway Width: 1" Keyway Height: 1/2" Key Included: No

Power Phase Type : Three
Capacity KVA : - MVA : -
Voltages Pri-Voltage : - Sec Voltage : - Taps : -
Other Impedance : -
Record Serial Num : - Manufacturer : US MOTORS Part Number : 50995W MZ Stock Number : -
Dimensions Height : Width : Depth : 0
