YOUR ONLINE SOLUTION FOR BUYING AND SELLING ELECTRICAL EQUIPMENT

Classified ID : 5454

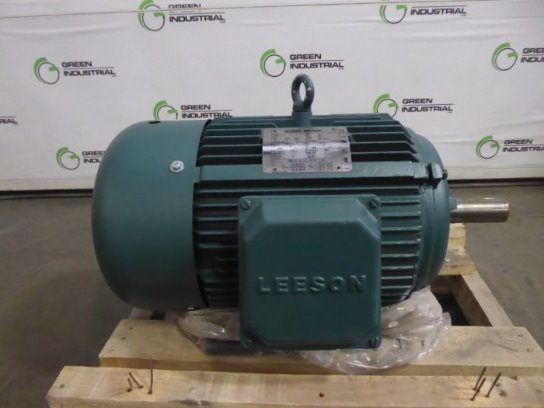

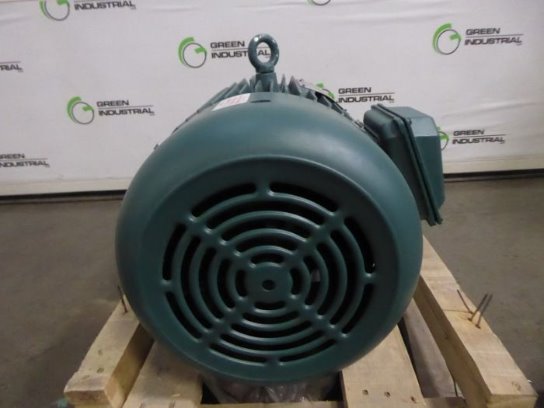

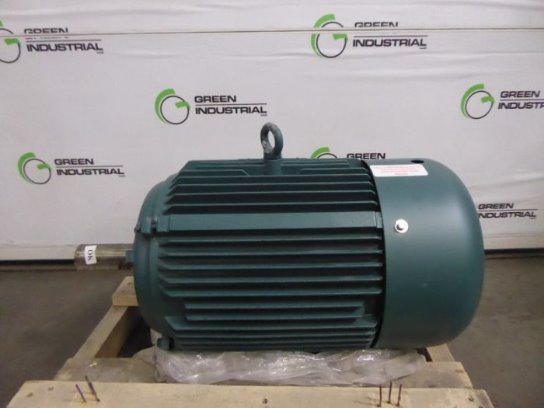

20 HP LEESON C256T17FB4D WATTSAVER ELECTRIC MOTOR 208-230/460V 256T FRAME NEW NIB
Start Time:08/30/2019 16:41:59 CDT
End Time:02/26/2020 15:42:16 CDT
Location: Wisconsin, 53004
Country: USA
Time Left:

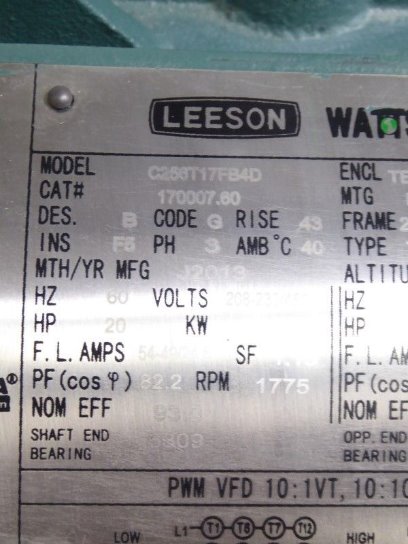

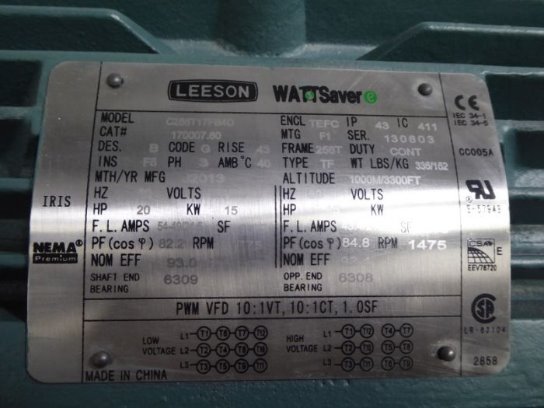

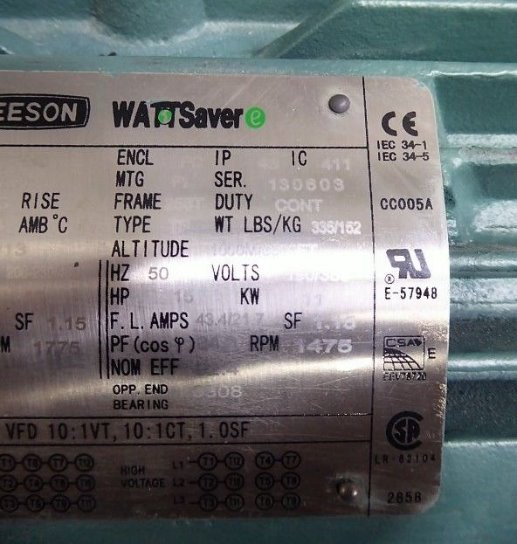

Model: C256T17FB4D Encl: TEFC IP: 43 IC: 411 Cat#: 170007.60 MTG: F1 Ser.: 130603 Des.: B Code: G Rise: 43 Frame: 156T Duty: Cont. Ins: F5 Phase: 3 Ambient °C: 40 Type: TF Weight lbs/Kg: 335/152 Month/Year Mfg.: J2013 Altitude: 1000M/3300 Ft AC Ratings: Hertz: 60 Volts: 208-230/460 HP: 20 kW: 15 F.L. Amps: 54-49/24.5 Service Factor: 1.15 PF ( cos φ): 82.2 RPM: 1775 Nominal Eff.: 93.0 DC Ratings: Hertz: 50 Volts: 190/380 HP: 15 kW: 11 F.L. Amps: 43.4/21.7 Service Factor: 1.15 PF ( cos φ): 84.8 RPM: 1475 Nominal Eff.: 92.4 Shaft End Bearing: 6309 Opp. End Bearing: 6308

Power Phase Type : Three
Capacity KVA : - MVA : -
Voltages Pri-Voltage : - Sec Voltage : - Taps : -
Other Impedance : -
Record Serial Num : - Manufacturer : LESSON Part Number : 50988W Stock Number : -
Dimensions Height : Width : Depth : 0
