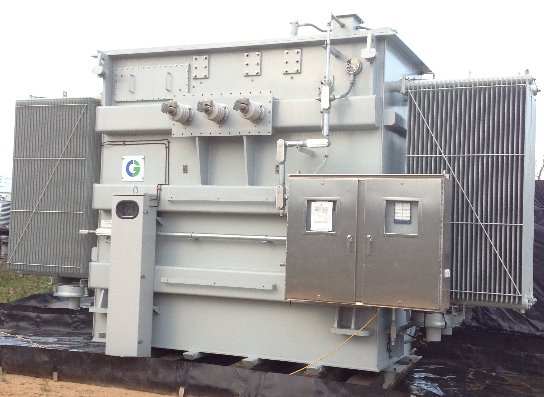

24/40 MVA Unused CG transformer 138000 Y -13800 v
Start Time:08/29/2019 14:07:36 CDT
End Time:11/27/2019 13:07:44 CDT
Location: 77047
Country: -
Time Left:
One (1) Unused CG, oil filled Generator step-up Transformer Serial number: 20151300359, class ONAN/ONAF, three phase 60 hz. 65 °C rise, imp: 5.68 %, Manufactured 2013 24/32/40 MVA, copper wound High voltage: 138,000 v GrdY Bil 650 kv Low voltage: 13800 V delta, Bil: 110 kv Taps: 144900-141450-138000-134550-131100 Core and coils 54,104 lbs. Tank and fittings 34,210 lbs. oil (4,438 gallons) 32,733 lbs. Total 121,047 lbs. Shipping Dimension: 250” L x 140” W x 150” H 112,618 lbs
Power Phase Type : Three
Capacity KVA : 24000 MVA : 24
Voltages Pri-Voltage : 138000Y Sec Voltage : 13800 DELTA Taps : With Taps 2x2.5% Above and Below
Other Impedance : 5.68
Record Serial Num : 20151300359 Manufacturer : CG Part Number : - Stock Number : T11
Dimensions Height : 250 Width : 140 Depth : 150
