Classified ID : 5396
500 kva Grounding transformer 13800 v
Start Time:08/29/2019 16:17:52 CDT
End Time:06/24/2020 16:18:28 CDT
Location: Georgia, 30115
Country: USA
Time Left:

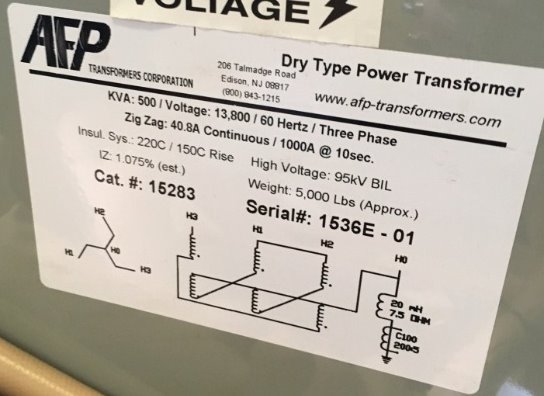

One (1) Unused AFP Grounding transformer, dry type outdoor Zig Zag, 500 kva, 13800 v, three phase 60 hz, 40.8 amps continuous/1000 amps @ 10 secs., 95 kv bil, impedance 1.075%, 220 deg C/150 deg c rise, Cat#15283, Seril number#1536E-01, Approximate size: 4’ L x 4’ W x 4’ H 5000 lbs
Power Phase Type : Three
Capacity KVA : 500 MVA : 1
Voltages Pri-Voltage : 13800 Sec Voltage : 13800 Taps : Without Taps
Other Impedance : 1.075
Record Serial Num : 1536E01 Manufacturer : AFP Part Number : Cat 15283 Stock Number : T12
Dimensions Height : 4' Width : 4' Depth : 4
